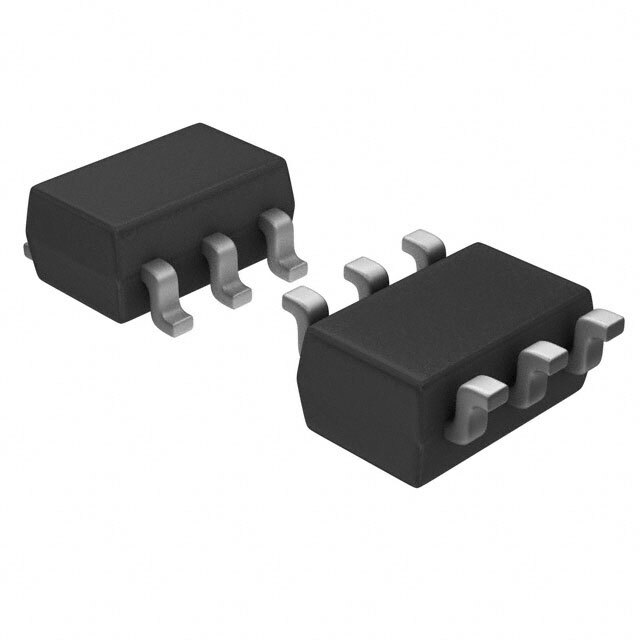

LTC1982ES6#TRPBF

SKU: 90607

Manufacturer: Analog Devices

Driver 2-OUT High Side 6-Pin TSOT-23 T/R

1850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High Side
Number of Drivers	2
Type	MOSFET
Number of Outputs	2
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	0.03
Typical Input Low Threshold Voltage (V)	0.4(Min)
Typical Input High Threshold Voltage (V)	1.6(Max)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Maximum Turn-On Delay Time (ns)	110000(Typ)
Maximum Turn-Off Delay Time (ns)	12000(Typ)
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	6
