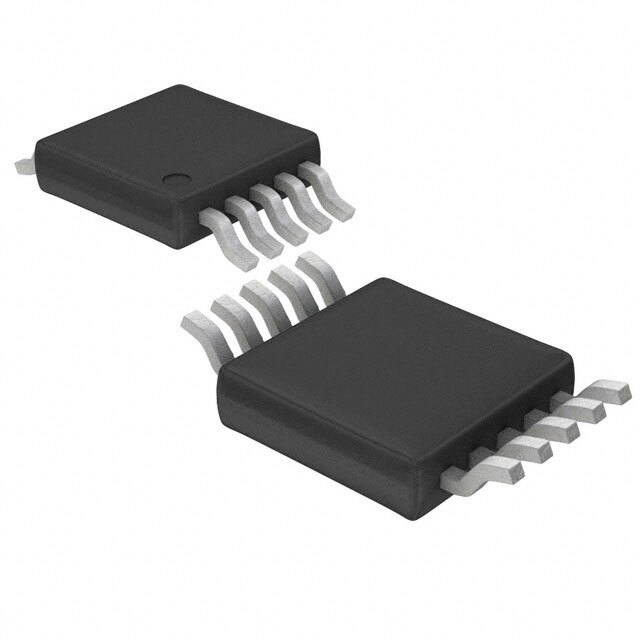

LTC1865HMS#TRPBF

SKU: 147318

Manufacturer: Analog Devices

2-Channel Single ADC SAR 250ksps 16-bit Serial Automotive 10-Pin MSOP T/R

4700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	250ksps
Digital Interface Type	Serial (3-Wire, SPI, Microwire)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Single
Input Voltage	5V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	4.25
Maximum Power Dissipation (mW)	400
Integral Nonlinearity Error	±8.5LSB
Full Scale Error	±20mV
Signal to Noise Ratio	87dB(Typ)
No Missing Codes (bit)	14
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Pin Count	10
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	10
