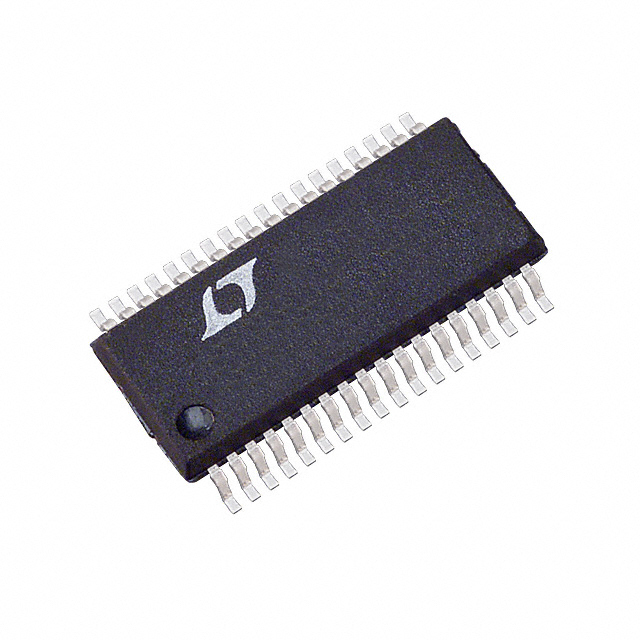

LTC1821BCGW#TRPBF

SKU: 12831

Manufacturer: Analog Devices

DAC 1-CH Segment 16-bit 36-Pin SSOP W T/R

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Segment
Resolution	16bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	2(Typ)
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Bipolar
Voltage Reference	External
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±15/5
Maximum Dual Supply Voltage (V)	±16.5/5.5
Power Supply Type	Dual
Integral Nonlinearity Error	±2LSB
Full Scale Error	±24LSB
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Original Package	SSOP W
Pin Count	36
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.39(Max)
Package Length	15.55(Max)
Package Width	7.6(Max)
