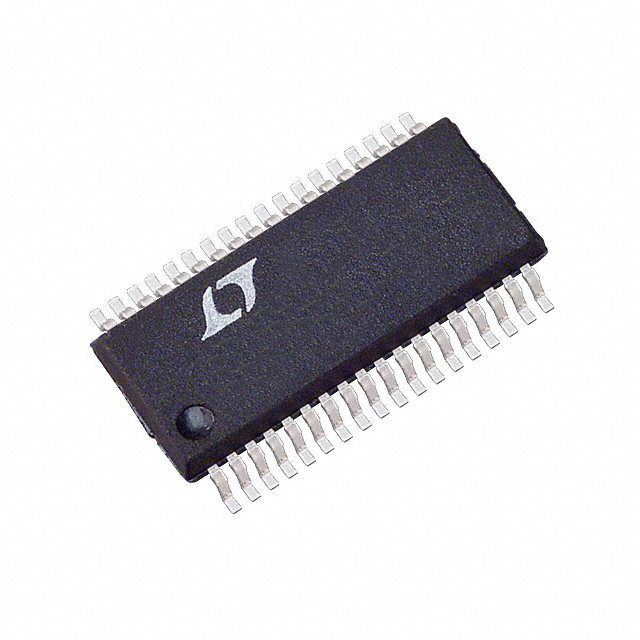

LTC1821AIGW

SKU: 97705

Manufacturer: Analog Devices

DAC 1-CH Segment 16-bit 36-Pin SSOP W

440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Segment
Resolution	16bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	2(Typ)
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	External
Minimum Dual Supply Voltage (V)	±4.5
Typical Dual Supply Voltage (V)	±15/5
Maximum Dual Supply Voltage (V)	±16.5/5.5
Power Supply Type	Dual
Integral Nonlinearity Error	±1LSB
Full Scale Error	±16LSB
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Pin Count	36
Standard Package Method	SOP
Original Package	SSOP W
Terminal Form	Surface Mount
Package Height	2.39(Max)
Package Length	15.55(Max)
Package Width	7.6(Max)
