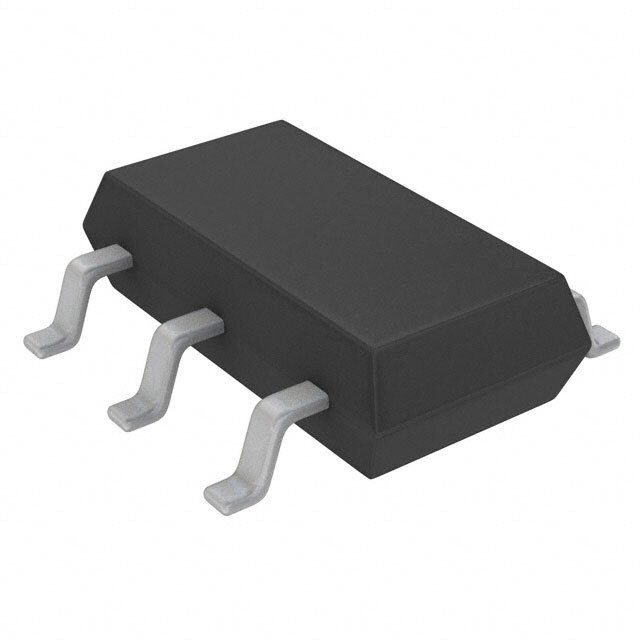

LTC1772IS6#TRPBF

SKU: 147314

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Down 650kHz 6-Pin TSOT-23 T/R

430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.8 to 9.8
Maximum Switching Frequency (kHz)	650
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	9.8
Operating Supply Voltage (V)	2.5 to 9.8
Maximum Supply Current (mA)	0.42
Typical Quiescent Current (mA)	0.27
Minimum Switching Frequency (kHz)	500
Typical Switching Frequency (kHz)	550
Synchronous Rectifier	No
Synchronous Clock	No
Programmability	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	6
