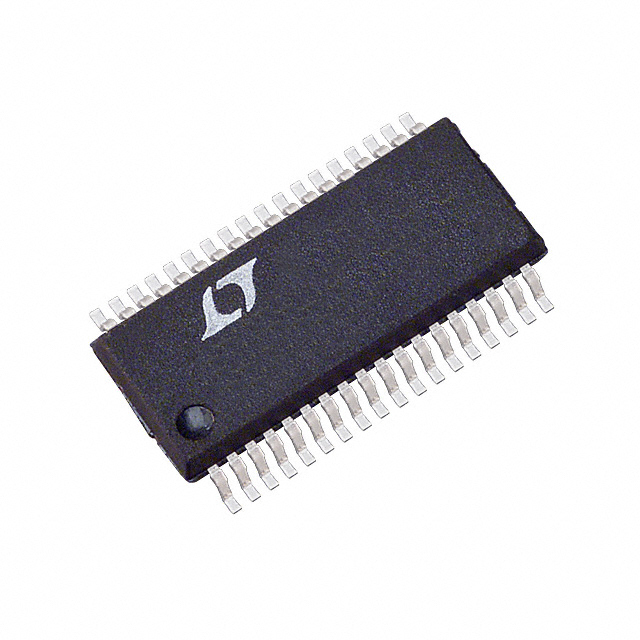

LTC1439IGW#PBF

SKU: 76374

Manufacturer: Analog Devices

DC/DC Cntrlr Dual-OUT Step Down 138kHz Automotive 36-Pin SSOP W Tube

1380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Number of Outputs	2
Topology	Step Down
Output Voltage (V)	1.19 to 9
Maximum Output Current (A)	2
Maximum Switching Frequency (kHz)	138
Minimum Input Voltage (V)	3.5
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	3.5 to 36
Maximum Supply Current (mA)	0.32(Typ)
Minimum Switching Frequency (kHz)	112
Typical Switching Frequency (kHz)	125
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	36
Standard Package Method	SOP
Original Package	SSOP W
Terminal Form	Surface Mount
Package Height	2.39(Max)
Package Length	15.55(Max)
Package Width	7.6(Max)
