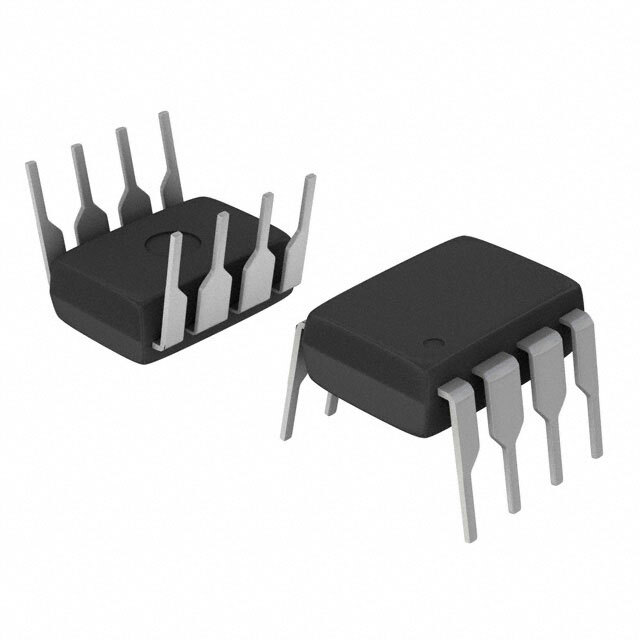

LTC1050CN8

SKU: 83494

Manufacturer: Analog Devices

Op Amp Single Auto Zero/Chopper ±8V/16V Automotive 8-Pin PDIP N

590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Auto Zero/Chopper
Manufacturer Type	Zero Drift Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	0.005@±5V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	16
Minimum Dual Supply Voltage (V)	±2.375
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±8
Maximum Input Offset Current (uA)	0.125@±5V
Typical Input Bias Current (uA)	0.00001@±5V
Maximum Input Bias Current (uA)	0.000075@±5V
Maximum Quiescent Current (mA)	1.5@±5V
Power Supply Type	Single
Typical Slew Rate (V/us)	4@±5V
Typical Voltage Gain (dB)	160
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0018@±5V
Minimum PSRR (dB)	120
Minimum CMRR (dB)	114
Minimum CMRR Range (dB)	105 to 115
Typical Gain Bandwidth Product (MHz)	2.5
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Pin Count	8
Standard Package Method	DIP
Original Package	PDIP N
Terminal Form	Through Hole
Package Height	3.3
Package Length	10.16(Max)
Package Width	6.48
PCB changed	8
