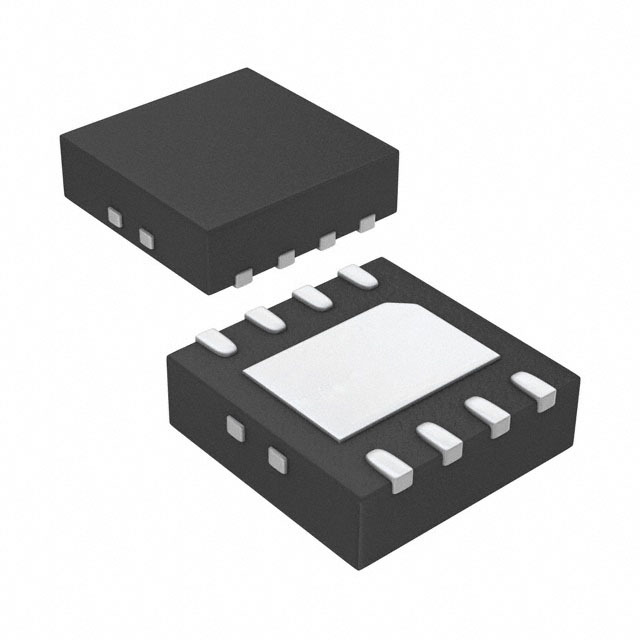

LT8570EDD#PBF

SKU: 154409

Manufacturer: Analog Devices

Conv DC-DC 2.55V to 40V Inv/Step Up Single-Out 65V 8-Pin DFN EP Tube

2780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Inverting
Output Type	Adjustable
Switching Frequency (kHz)	200 to 1500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	65(Max)
Minimum Input Voltage (V)	2.55
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	2.55 to 40
Typical Quiescent Current (uA)	1200
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Pin Count	8
Standard Package Method	DFN
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	3
PCB changed	8
