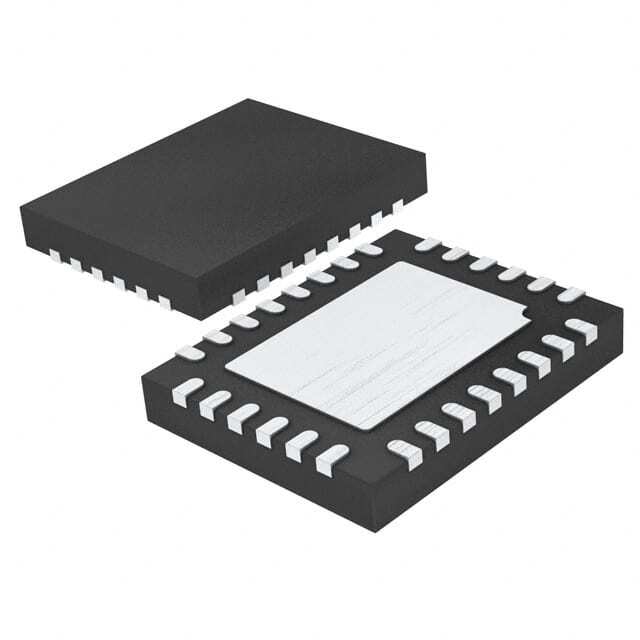

LT8390AIUFD#PBF

SKU: 83490

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Down/Step Up 1430kHz Automotive 28-Pin QFN EP Tube

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	1 to 60
Maximum Output Current (A)	10
Maximum Switching Frequency (kHz)	1430
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	60
Operating Supply Voltage (V)	4 to 60
Typical Quiescent Current (mA)	0.27
Typical Gate Driver Pull Up Resistance (Ohm)	2.6/3.2
Typical Gate Driver Pull Down Resistance (Ohm)	1.4/1.2
Minimum Switching Frequency (kHz)	1290
Typical Switching Frequency (kHz)	1360
Synchronous Rectifier	Yes
Synchronous Clock	No
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	QFN EP
Pin Count	28
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	4
PCB changed	28
