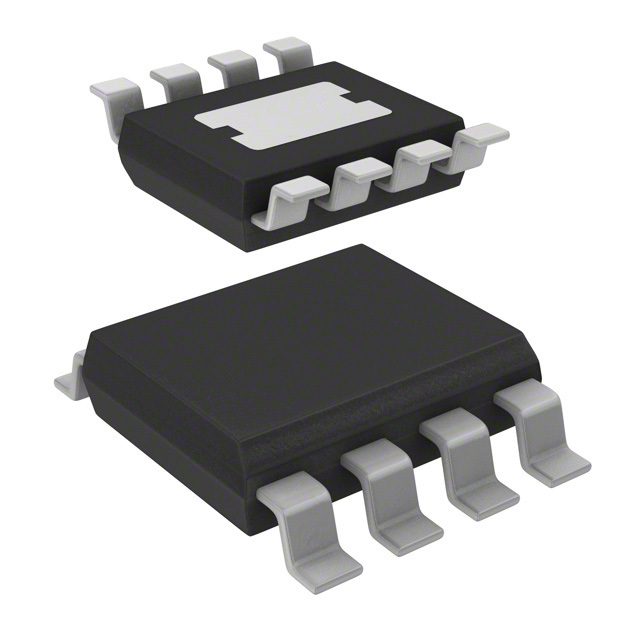

LT6370IS8E#PBF

SKU: 76341

Manufacturer: Analog Devices

INST Amp Single 35V 8-Pin SOIC N EP Tube

1610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	1
Maximum Voltage Gain (dB)	60
Maximum Voltage Gain Range (dB)	60 to 75
Minimum CMRR (dB)	88
Minimum CMRR Range (dB)	85 to 95
Minimum PSRR (dB)	110
Maximum Input Offset Voltage (mV)	0.055@±15V
Operating Supply Voltage-Max (V)	35
Maximum Supply Voltage Range (V)	30 to 50
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	35
Maximum Input Bias Current (uA)	0.0006@±15V
Maximum Supply Current (mA)	2.75@±15V
Typical Output Current (mA)	80(Max)
Maximum Input Resistance (MOhm)	225000@±15V
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	SOIC N EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.99(Max)
PCB changed	8
