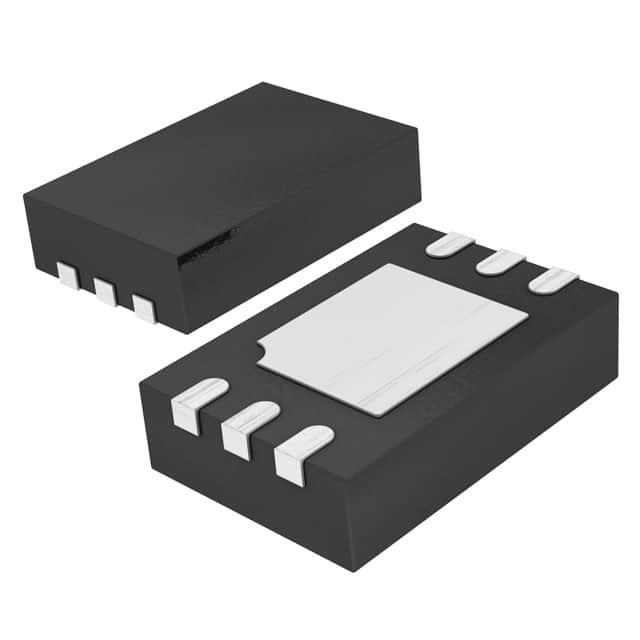

LT6105CDCB#TRMPBF

SKU: 111789

Manufacturer: Analog Devices

SP Amp Current Sense Amp Single 36V Automotive 6-Pin DFN EP T/R

3340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Current Sense Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Rail to Rail	No
Minimum CMRR Range (dB)	85 to 95
Minimum CMRR (dB)	94
Minimum PSRR (dB)	98
Typical Output Current (mA)	1(Min)@12V
Maximum Input Offset Voltage (mV)	1@12V
Operating Supply Voltage-Max (V)	36
Maximum Supply Voltage Range (V)	30 to 50
Minimum Single Supply Voltage (V)	2.85
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	36
Maximum Supply Current (mA)	0.35@36V@0C to 70C
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	6
Standard Package Method	DFN
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	2
Package Width	3
PCB changed	6
