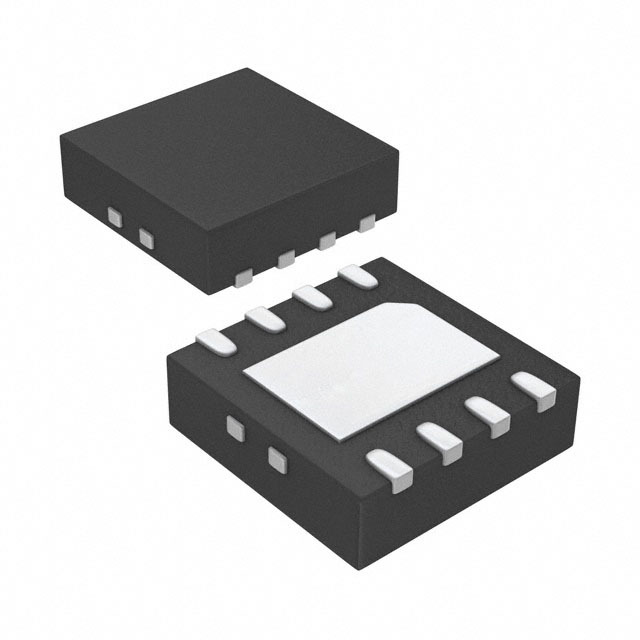

LT6020IDD#TRPBF

SKU: 62399

Manufacturer: Analog Devices

Op Amp Dual Micropower Amplifier R-R O/P ±15V/30V Automotive 8-Pin DFN EP T/R

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Micropower Amplifier
Manufacturer Type	Micropower Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Maximum Input Offset Voltage (mV)	0.07@±15V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	30
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±15
Typical Low Level Output Voltage (V)	0.13
Typical High Level Output Voltage (V)	0.1
Maximum Input Offset Current (uA)	0.001@±15V
Typical Input Bias Current (uA)	0.0001@±15V
Maximum Input Bias Current (uA)	0.003@±15V
Maximum Supply Current (mA)	0.2@±15V
Power Supply Type	Single
Typical Slew Rate (V/us)	5@±15V
Typical Input Noise Voltage Density (nV/rtHz)	50@±15V
Input Offset Voltage Drift (uV/°C)	0.8
Typical Voltage Gain (dB)	138
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.037@±15V
Minimum PSRR (dB)	120
Minimum CMRR (dB)	120
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	0.4
Typical Settling Time (ns)	13800
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	DFN
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	3
PCB changed	8
