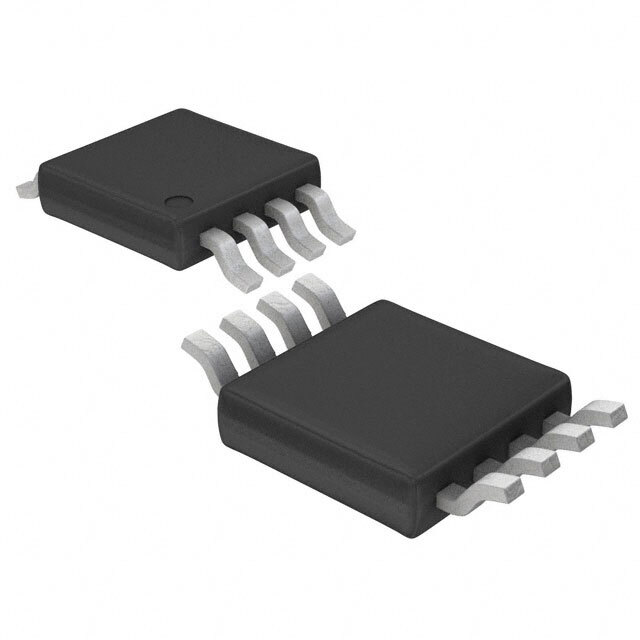

LT6004HMS8#TRPBF

SKU: 122596

Manufacturer: Analog Devices

Op Amp Dual Low Power Amplifier R-R I/O ±8V/16V Automotive 8-Pin MSOP T/R

3050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Maximum Input Offset Voltage (mV)	1.5@5V@-40C to 125C
Minimum Single Supply Voltage (V)	1.6
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	16
Minimum Dual Supply Voltage (V)	±0.8
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±8
Typical Low Level Output Voltage (V)	0.275
Typical High Level Output Voltage (V)	0.4
Maximum Input Offset Current (uA)	0.004@5V@-40C to 125C
Maximum Input Bias Current (uA)	0.012@5V@-40C to 125C
Maximum Supply Current (mA)	0.005@5V@-40C to 125C
Power Supply Type	Single
Typical Slew Rate (V/us)	0.0002(Min)@5V@-40C to 125C
Input Offset Voltage Drift (uV/°C)	2(Typ)
Typical Voltage Gain (dB)	86.02(Min)
Minimum PSRR (dB)	76
Minimum CMRR (dB)	68
Minimum CMRR Range (dB)	65 to 70
Typical Gain Bandwidth Product (MHz)	0.002
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	MSOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
