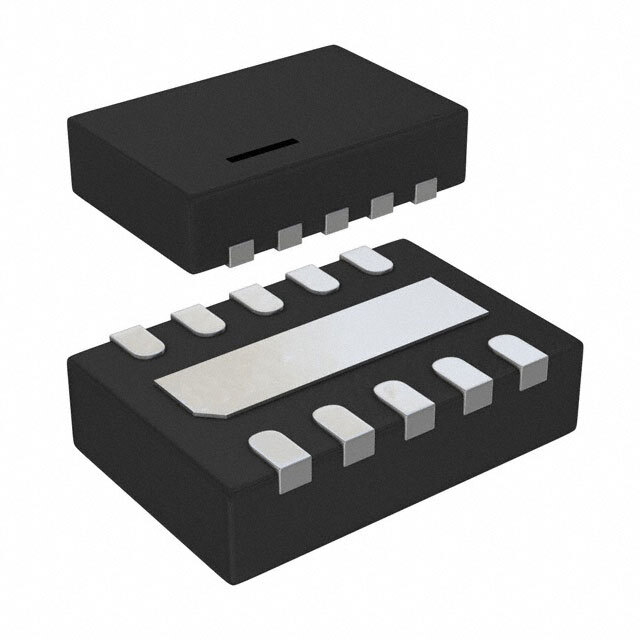

LT3970EDDB#TRPBF

SKU: 33981

Manufacturer: Analog Devices

Conv DC-DC 4.2V to 40V Step Down Single-Out 1.21V to 25V 0.35A Automotive 10-Pin DFN EP T/R

1070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	200 to 2200
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.21 to 25
Maximum Output Current (A)	0.35
Minimum Input Voltage (V)	4.2
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	4.2 to 40
Typical Switch Current (A)	0.7
Typical Quiescent Current (uA)	1.7
Line Regulation	0.01%/V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	DFN
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	2
PCB changed	10
