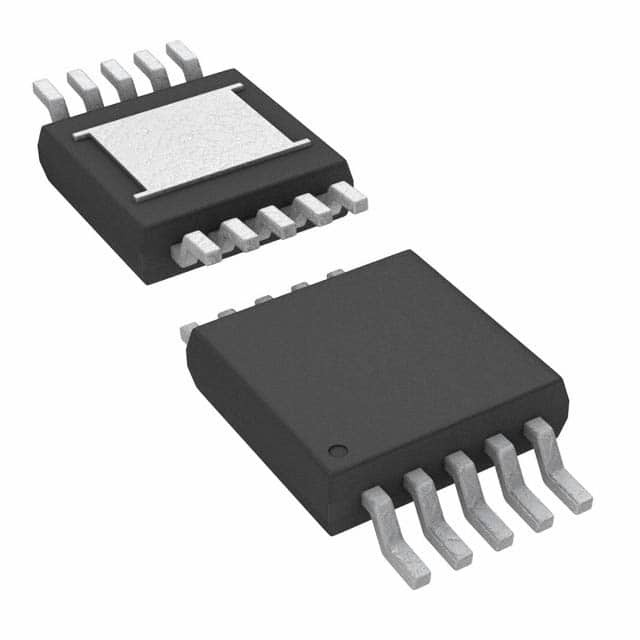

LT3685IMSE#TRPBF

SKU: 118863

Manufacturer: Analog Devices

Conv DC-DC 3.6V to 36V Step Down Single-Out 0.79V to 20V 2A Automotive 10-Pin MSOP EP T/R

3390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	160 to 2700
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.79 to 20
Maximum Output Current (A)	2
Minimum Input Voltage (V)	3.6
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	3.6 to 36
Typical Quiescent Current (uA)	1300
Line Regulation	0.01%/V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	SOP
Original Package	MSOP EP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	10
