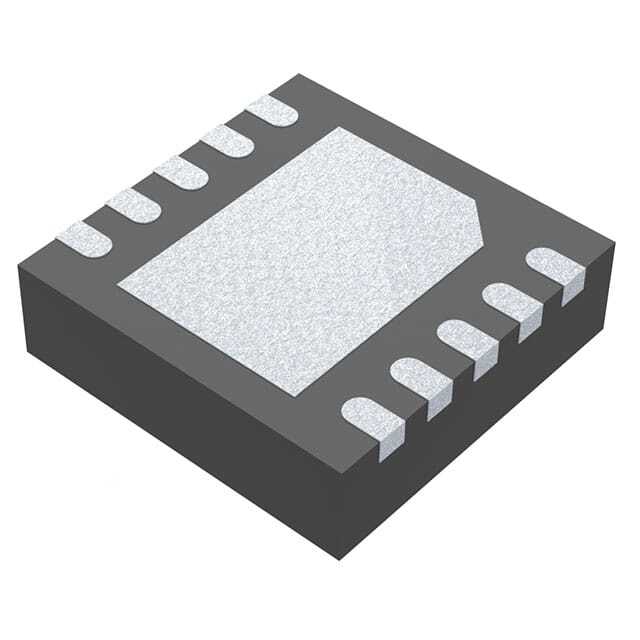

LT3090HDD#TRPBF

SKU: 136782

Manufacturer: Analog Devices

LDO Regulator Neg 0V to -32V 0.6A Automotive 10-Pin DFN EP T/R

1850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Negative
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	0 to -32
Maximum Output Current (A)	0.6
Minimum Input Voltage (V)	-36
Maximum Input Voltage (V)	-1.5
Maximum Dropout Voltage @ Current (V)	0.23@1mA
Line Regulation	2.5uV/V(Typ)
Load Regulation	2.5mV
Junction to Ambient	34°C/W
Junction to Case	5.5°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	10
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	3
PCB changed	10
