LT3088MPM#TRPBF

SKU: 76287

Manufacturer: Analog Devices

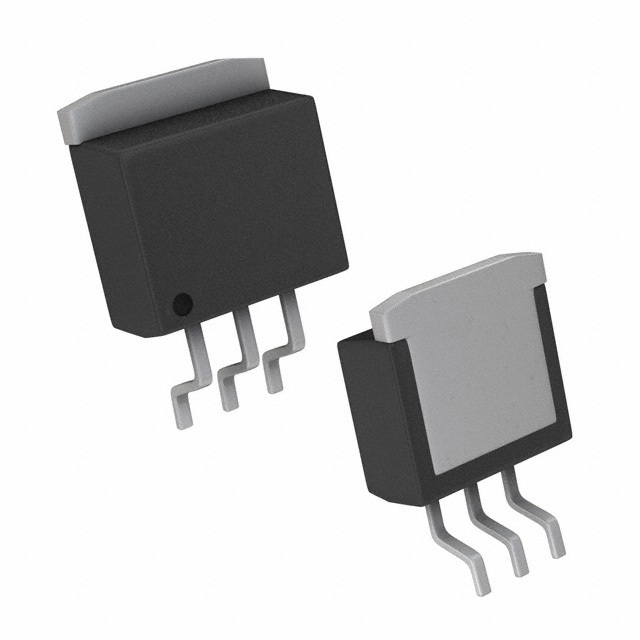

LDO Regulator Pos 0V to 34.5V 0.8A Automotive 4-Pin(3+Tab) DDPAK T/R

2070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	0 to 34.5
Maximum Output Current (A)	0.8
Minimum Input Voltage (V)	1.2
Maximum Input Voltage (V)	36
Maximum Dropout Voltage @ Current (V)	1.6@800mA
Line Regulation	1.5nA/V(Typ)
Load Regulation	-0.1nA(Typ)
Maximum Quiescent Current (mA)	2
Junction to Ambient	14°C/W
Junction to Case	3°C/W
Special Features	Current Limit
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Military
Packing Method	Tape and Reel
Original Package	DDPAK
Pin Count	4
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.57(Max)
Package Length	10.54(Max)
Package Width	9.4(Max)
PCB changed	3
Tab	Tab
