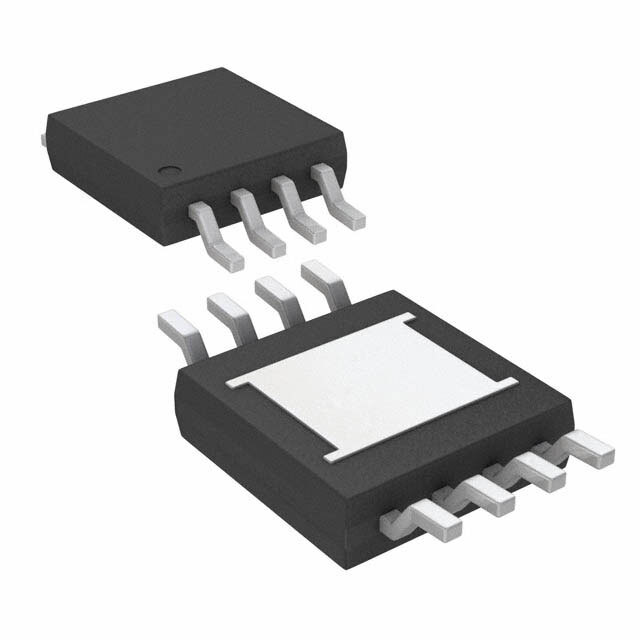

LT3085MPMS8E

SKU: 111737

Manufacturer: Analog Devices

LDO Regulator Pos 0V to 36V 0.5A Automotive 8-Pin MSOP EP Tube

2190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	0 to 36
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	1.2
Maximum Input Voltage (V)	36
Maximum Dropout Voltage @ Current (V)	0.15@100mA
Line Regulation	0.5nA/V
Load Regulation	-0.1nA(Typ)
Maximum Quiescent Current (mA)	0.5
Junction to Ambient	60°C/W
Junction to Case	10°C/W
Special Features	Current Limit
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	MSOP EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
