LT3065MPMSE#PBF

SKU: 136781

Manufacturer: Analog Devices

LDO Regulator Pos 0.6V to 40V 0.5A Automotive 12-Pin MSOP EP Tube

1710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Adjustable
Output Voltage (V)	0.6 to 40
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	1.6
Maximum Input Voltage (V)	45
Maximum Dropout Voltage @ Current (V)	0.15@10mA
Line Regulation	3mV
Load Regulation	4mV
Junction to Ambient	28°C/W
Junction to Case	6°C/W
Special Features	Current Limit
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Military
Packing Method	Tube

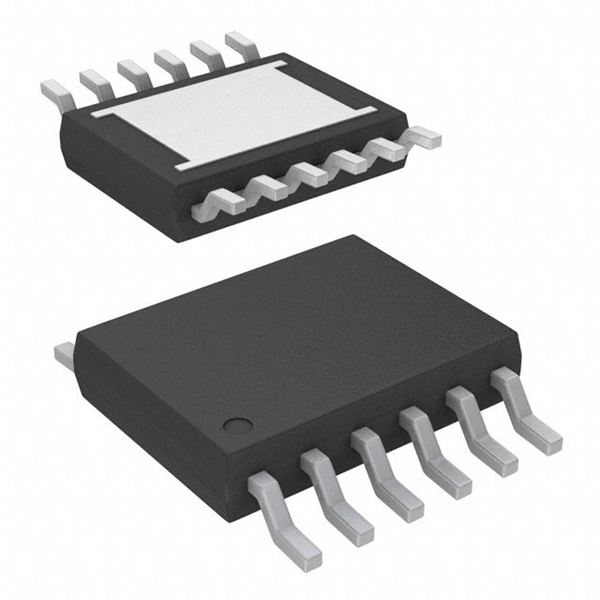

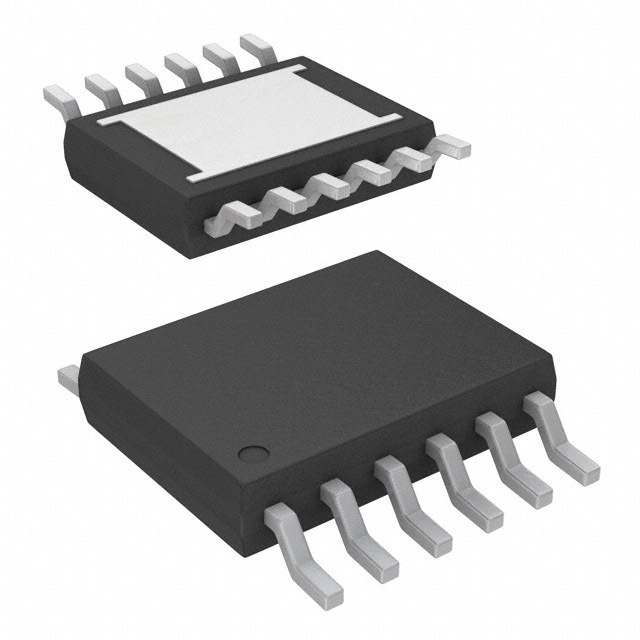

Original Package	MSOP EP
Pin Count	12
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	4.04
Package Width	3
PCB changed	12
