LT3065MPDD#PBF

SKU: 125867

Manufacturer: Analog Devices

LDO Regulator Pos 0.6V to 40V 0.5A Automotive 10-Pin DFN EP Tube

2930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Adjustable
Output Voltage (V)	0.6 to 40
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	1.6
Maximum Input Voltage (V)	45
Maximum Dropout Voltage @ Current (V)	0.2@50mA
Line Regulation	3mV
Load Regulation	4mV
Junction to Ambient	31°C/W
Junction to Case	9°C/W
Special Features	Current Limit
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Military
Packing Method	Tube

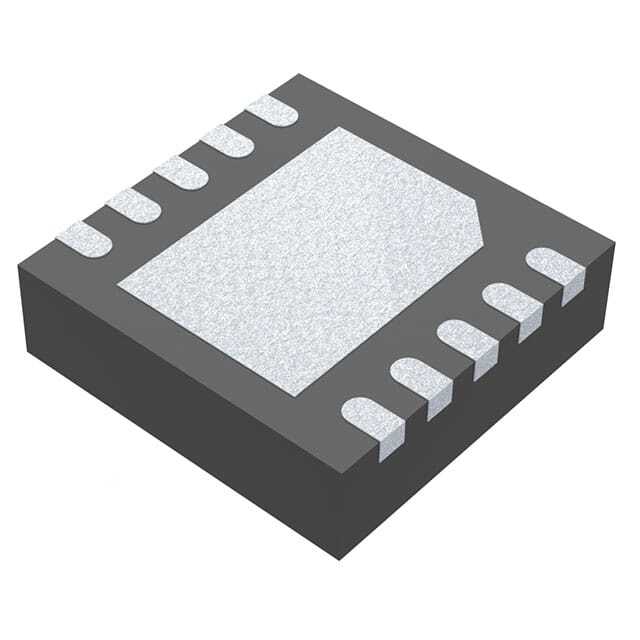

Original Package	DFN EP
Pin Count	10
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	3
PCB changed	10
