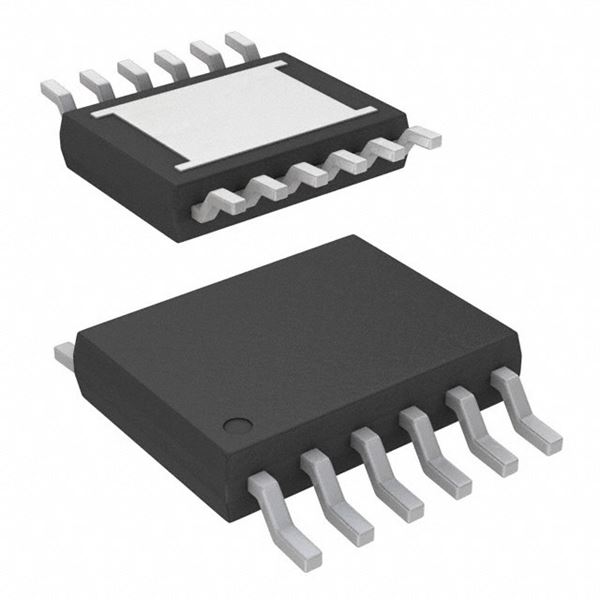

LT3050MPMSE-5#TRPBF

SKU: 62331

Manufacturer: Analog Devices

LDO Regulator Pos 5V 0.1A Automotive 12-Pin MSOP EP T/R

1190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.1
Minimum Input Voltage (V)	1.6
Maximum Input Voltage (V)	45
Maximum Dropout Voltage @ Current (V)	0.24@10mA
Line Regulation	25mV
Load Regulation	50mV
Junction to Ambient	45°C/W
Junction to Case	10°C/W
Special Features	Current Limit
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tape and Reel
Original Package	MSOP EP
Pin Count	12
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	4.04
Package Width	3
PCB changed	12
