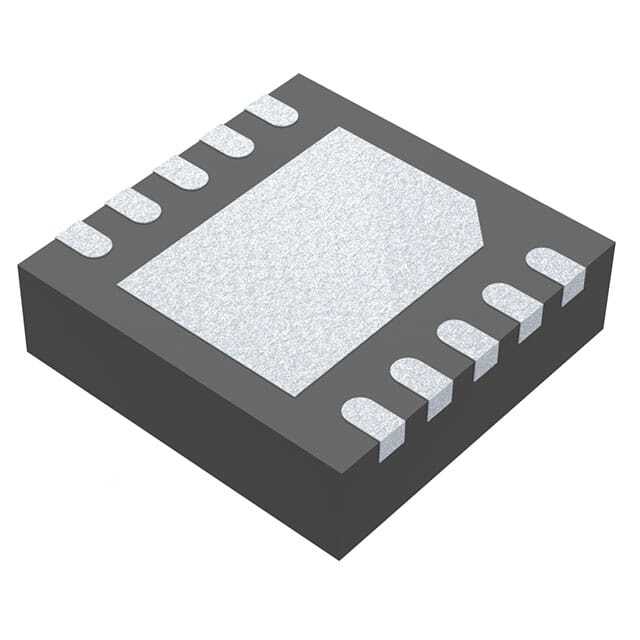

LT3040IDD#TRPBF

SKU: 125863

Manufacturer: Analog Devices

LDO Regulator Pos 0V to 15V 0.2A 10-Pin DFN EP T/R

3850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	0 to 15
Maximum Output Current (A)	0.2
Minimum Input Voltage (V)	1.8
Maximum Input Voltage (V)	20
Maximum Dropout Voltage @ Current (V)	0.065@1mA
Line Regulation	3uV/V
Load Regulation	0.5mV
Junction to Ambient	43°C/W
Junction to Case	5.5°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	DFN EP
Pin Count	10
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	3
PCB changed	10
