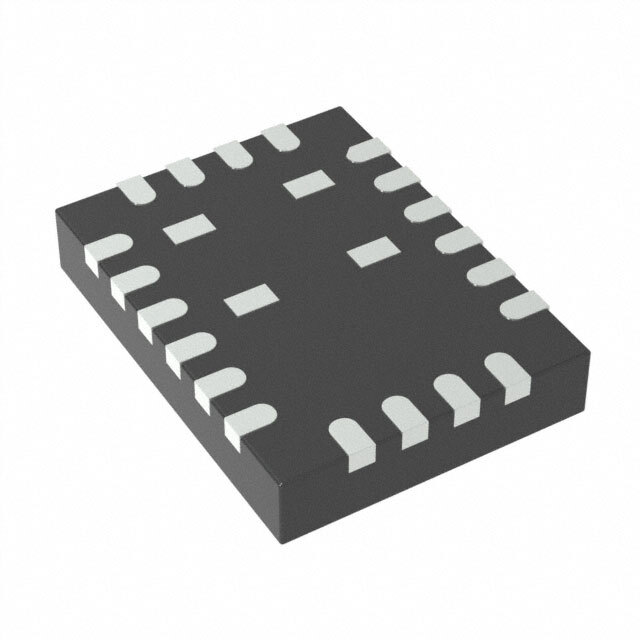

LT3033IUDC#PBF

SKU: 143830

Manufacturer: Analog Devices

LDO Regulator Pos 0.2V to 9.7V 3A 20-Pin QFN EP Tube

1160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	0.2 to 9.7
Maximum Output Current (A)	3
Minimum Input Voltage (V)	0.95
Maximum Input Voltage (V)	10
Maximum Dropout Voltage @ Current (V)	0.07@100mA
Line Regulation	1.25mV
Load Regulation	1mV
Maximum Quiescent Current (mA)	3.5
Typical Ground Current @ Full Load (mA)	27
Junction to Ambient	38°C/W
Junction to Case	3.4°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	QFN EP
Pin Count	20
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	3
PCB changed	20
