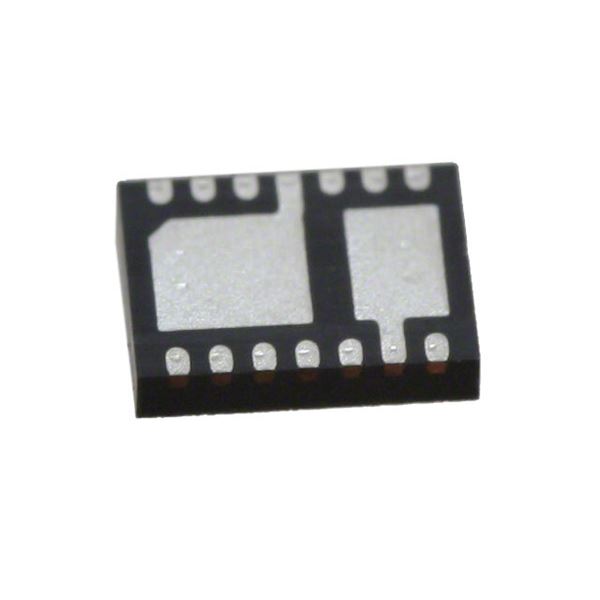

LT3032MPDE#PBF

SKU: 115451

Manufacturer: Analog Devices

LDO Regulator Neg/Pos ±1.22V to ±20V 0.15A/-0.15A Automotive 14-Pin DFN EP Tube

1650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	2
Polarity	Negative
Output Type	Adjustable
Output Voltage (V)	±1.22 to ±20
Maximum Output Current (A)	0.15
Minimum Input Voltage (V)	±2.3
Maximum Input Voltage (V)	±20
Maximum Dropout Voltage @ Current (V)	0.2@1mA
Reference Voltage (V)	±1.22
Line Regulation	12mV
Load Regulation	7mV
Junction to Ambient	43°C/W
Junction to Case	10°C/W
Special Features	Current Limit
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	DFN EP
Pin Count	14
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4
Package Width	3
PCB changed	14
