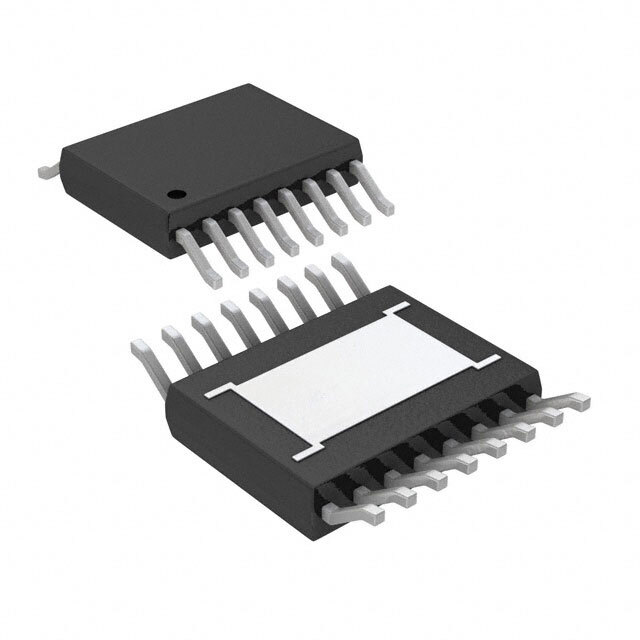

LT3022EMSE-1.5#TRPBF

SKU: 140129

Manufacturer: Analog Devices

LDO Regulator Pos 1.5V 1A 16-Pin MSOP EP T/R

3130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	1.5
Maximum Output Current (A)	1
Minimum Input Voltage (V)	0.9
Maximum Input Voltage (V)	10
Maximum Dropout Voltage @ Current (V)	0.09@100mA
Line Regulation	4mV
Load Regulation	3.8mV
Typical Ground Current @ Full Load (mA)	18
Junction to Ambient	38°C/W
Junction to Case	10°C/W
Special Features	Shutdown
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	MSOP EP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	4.04
Package Width	3
PCB changed	16
