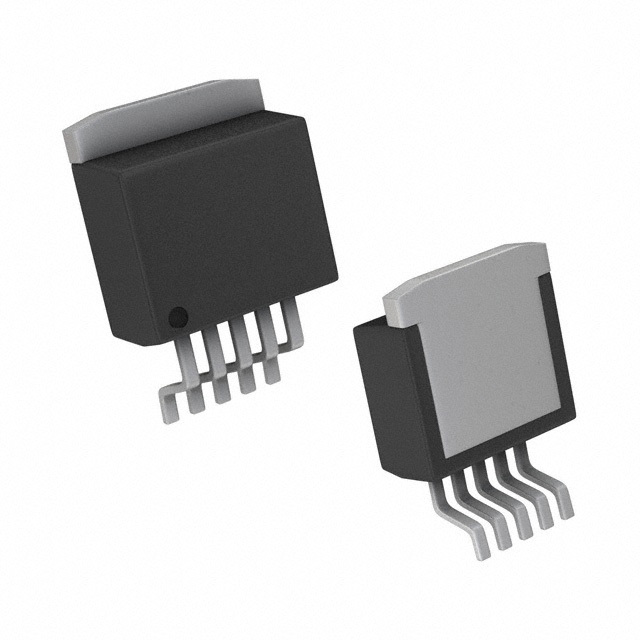

LT3015MPQ#PBF

SKU: 136778

Manufacturer: Analog Devices

LDO Regulator Neg -1.22V to -29.3V 1.5A Automotive 6-Pin(5+Tab) DDPAK Tube

820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Negative
Output Type	Adjustable
Output Voltage (V)	-1.22 to -29.3
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	-30
Maximum Input Voltage (V)	-1.8
Maximum Dropout Voltage @ Current (V)	0.095@1mA
Reference Voltage (V)	-1.22
Line Regulation	6mV
Load Regulation	3.8mV
Junction to Ambient	14°C/W
Junction to Case	3°C/W
Special Features	Current Limit
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	DDPAK
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.57(Max)
Package Length	10.54(Max)
Package Width	9.4(Max)
PCB changed	5
Tab	Tab
