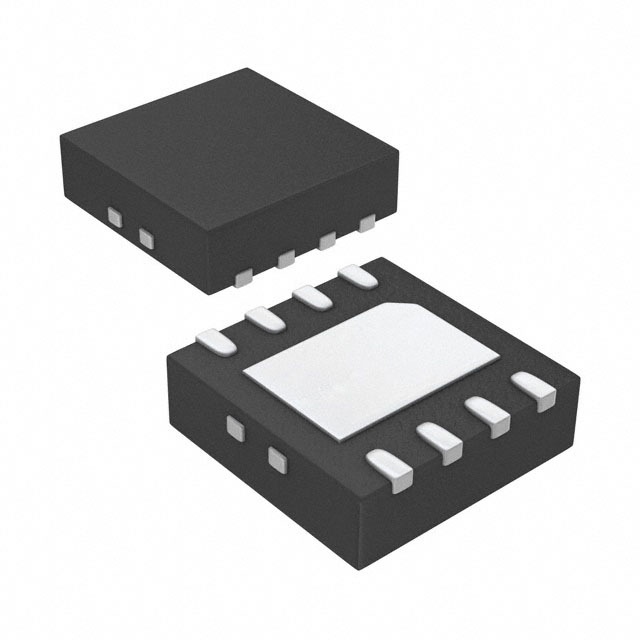

LT3014BEDD

SKU: 115448

Manufacturer: Analog Devices

LDO Regulator Pos 1.22V to 60V 0.02A Automotive 8-Pin DFN EP

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.22 to 60
Maximum Output Current (A)	0.02
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	80
Maximum Dropout Voltage @ Current (V)	0.18@100uA
Reference Voltage (V)	1.22
Line Regulation	10mV
Load Regulation	25mV
Junction to Ambient	40°C/W
Junction to Case	10°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Original Package	DFN EP
Pin Count	8
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	3
Package Width	3
PCB changed	8
