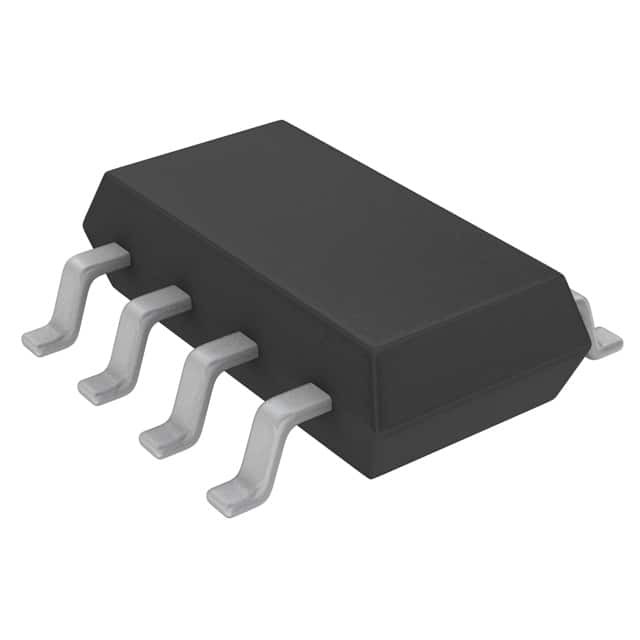

LT3008ITS8#TRMPBF

SKU: 122574

Manufacturer: Analog Devices

LDO Regulator Pos 0.6V to 44.5V 0.02A Automotive 8-Pin TSOT-23 T/R

2710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Adjustable
Output Voltage (V)	0.6 to 44.5
Maximum Output Current (A)	0.02
Minimum Input Voltage (V)	2
Maximum Input Voltage (V)	45
Maximum Dropout Voltage @ Current (V)	0.18@100uA
Reference Voltage (V)	0.6
Line Regulation	3mV
Load Regulation	5mV
Maximum Quiescent Current (mA)	0.006
Junction to Ambient	85°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	TSOT-23
Pin Count	8
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	8
