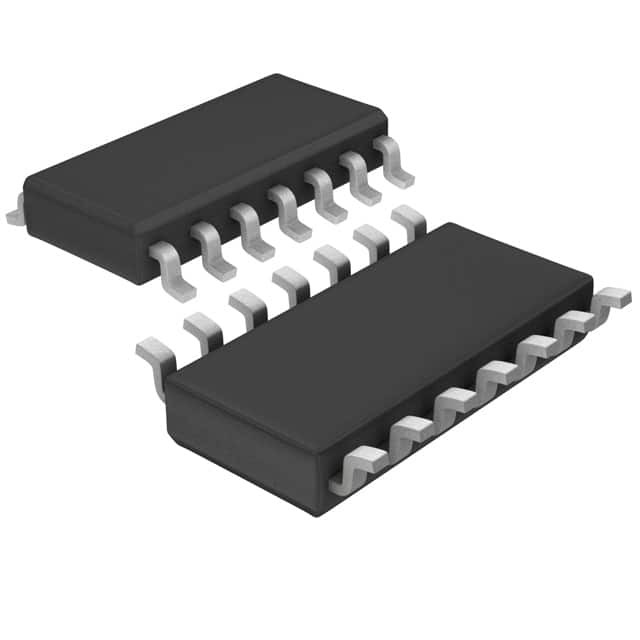

LT2179CS#TRPBF

SKU: 62315

Manufacturer: Analog Devices

Op Amp Quad Precision Amplifier ±22V/44V 14-Pin SOIC N T/R

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	4
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	0.15@5V
Minimum Single Supply Voltage (V)	2.2
Typical Single Supply Voltage (V)	24
Maximum Single Supply Voltage (V)	44
Minimum Dual Supply Voltage (V)	±1.1
Typical Dual Supply Voltage (V)	±18
Maximum Dual Supply Voltage (V)	±22
Maximum Input Offset Current (uA)	0.00035@5V
Maximum Input Bias Current (uA)	0.006@5V
Maximum Supply Current (mA)	0.084@5V
Power Supply Type	Dual
Typical Slew Rate (V/us)	0.025@5V
Typical Input Noise Voltage Density (nV/rtHz)	50@5V
Typical Voltage Gain (dB)	116.9
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.03@5V
Minimum PSRR (dB)	92
Minimum CMRR (dB)	90
Minimum CMRR Range (dB)	90 to 95
Typical Gain Bandwidth Product (MHz)	0.06
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.74(Max)
Package Width	3.99(Max)
PCB changed	14
