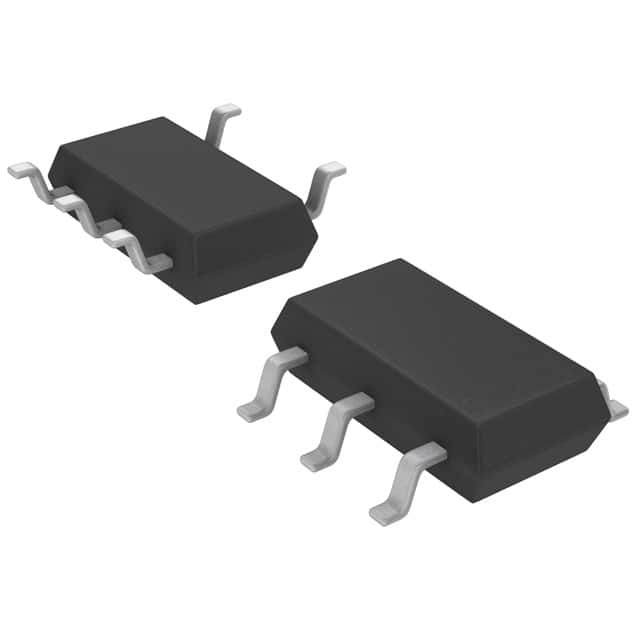

LT1880CS5#TRPBF

SKU: 76256

Manufacturer: Analog Devices

Op Amp Single Precision Amplifier R-R O/P ±18V/36V Automotive 5-Pin TSOT-23 T/R

240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Maximum Input Offset Voltage (mV)	0.15@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.0009@5V
Maximum Input Bias Current (uA)	0.0009@5V
Maximum Supply Current (mA)	1.9@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.4@5V
Typical Input Noise Voltage Density (nV/rtHz)	13@5V
Typical Voltage Gain (dB)	124.08
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.07@5V
Minimum PSRR (dB)	110
Minimum CMRR (dB)	116
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	1.1
Typical Settling Time (ns)	10000
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	SOT
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	2.9
Package Width	1.75(Max)
PCB changed	5
