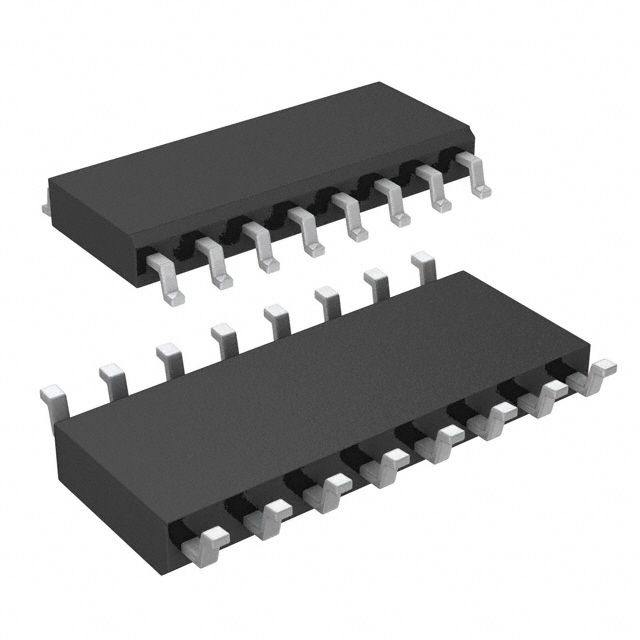

LT1725IS#TRPBF

SKU: 90405

Manufacturer: Analog Devices

Current Mode PWM Controller 90kHz to 115kHz 16-Pin SOIC N T/R

2560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current
Topology	Flyback
Number of PWM Outputs	1
Switching Frequency (kHz)	90 to 115
Maximum Duty Cycle (%)	90(Typ)
Rise Time (ns)	30
Fall Time (ns)	30
Operating Supply Voltage-Max (V)	22
Maximum Supply Current (mA)	15
Adjustable Output	No
On/Off Pin	No
Synchronous Pin	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	10.01(Max)
Package Width	3.99(Max)
PCB changed	16
