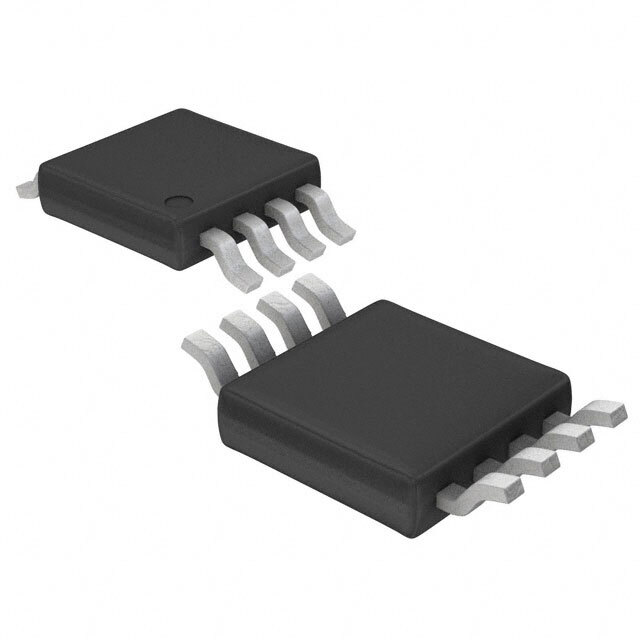

LT1720CMS8#TRPBF

SKU: 33879

Manufacturer: Analog Devices

Comparator Dual R-R O/P 6V 8-Pin MSOP T/R

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Ultra Fast Comparator
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	Bipolar
Typical CMRR (dB)	70
Typical PSRR (dB)	80
Maximum Propagation Delay Time (ns)	10
Output Type	Open Collector
Operating Supply Voltage-Max (V)	6
Maximum Input Offset Voltage (mV)	3@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	6
Maximum Input Bias Current (uA)	6(Min)@5V@0C to 70C
Maximum Supply Current (mA)	14@5V@0C to 70C
Typical Output Current (mA)	20(Max)
Power Supply Type	Single
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Standard Package Method	MSOP
Pin Count	8
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	8
