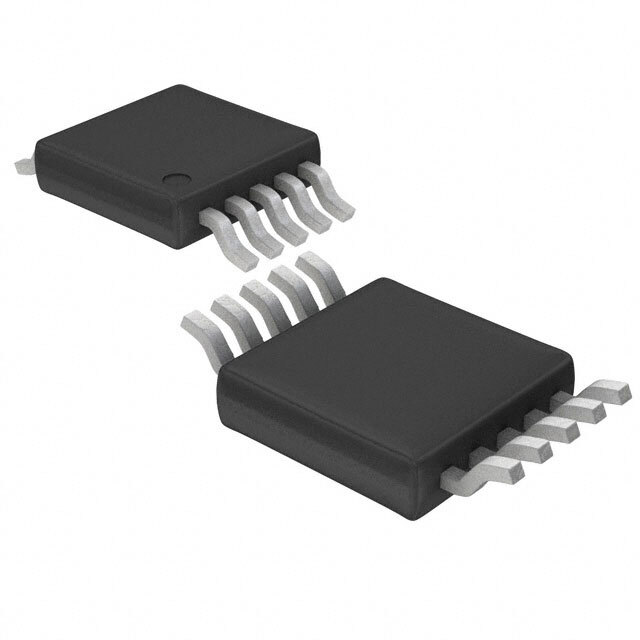

LT1715IMS

SKU: 133017

Manufacturer: Analog Devices

Comparator Dual R-R O/P ±6V/12V 10-Pin MSOP

1610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Manufacturer Type	Ultra Fast Comparator
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	Bipolar
Typical CMRR (dB)	70
Typical PSRR (dB)	80
Maximum Propagation Delay Time (ns)	9
Output Type	Open Collector
Operating Supply Voltage-Max (V)	±6
Maximum Input Offset Voltage (mV)	2.5@±5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±6
Maximum Input Bias Current (uA)	6(Min)@±5V@-40C to 85C
Maximum Supply Current (mA)	4@5V/-9.6(Min)@-5V@-40C to 85C
Typical Output Current (mA)	20(Max)
Maximum Test Temperature (°C)	85
Minimum Test Temperature (°C)	-40
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Standard Package Method	MSOP
Pin Count	10
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	10
