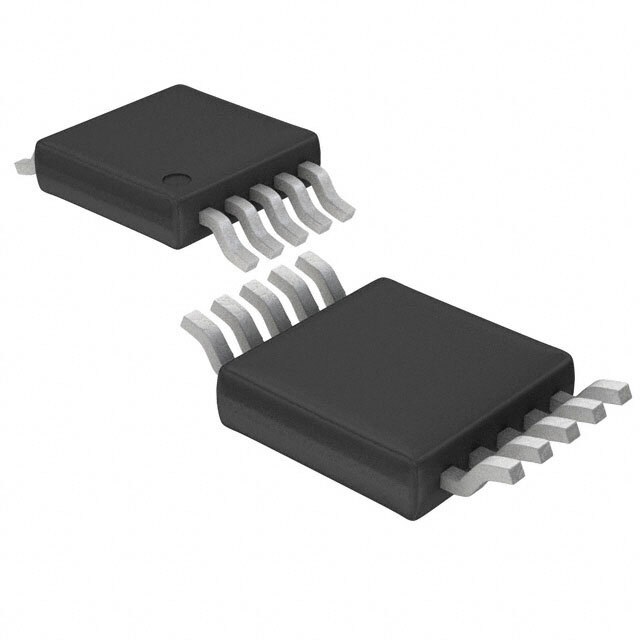

LT1715CMS#TRPBF

SKU: 111670

Manufacturer: Analog Devices

Comparator Dual R-R O/P ±6V/12V 10-Pin MSOP T/R

2010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Ultra Fast Comparator
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	Bipolar
Typical CMRR (dB)	70
Typical PSRR (dB)	80
Maximum Propagation Delay Time (ns)	9
Output Type	Open Collector
Operating Supply Voltage-Max (V)	12
Maximum Input Offset Voltage (mV)	2.5@±5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±6
Maximum Input Bias Current (uA)	6(Min)@±5V@0C to 70C
Maximum Supply Current (mA)	4@5V/-9.6(Min)@-5V@-40C to 85C
Typical Output Current (mA)	20(Max)
Maximum Test Temperature (°C)	70
Minimum Test Temperature (°C)	0
Power Supply Type	Dual
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	10
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.86
Package Length	3
Package Width	3
PCB changed	10
