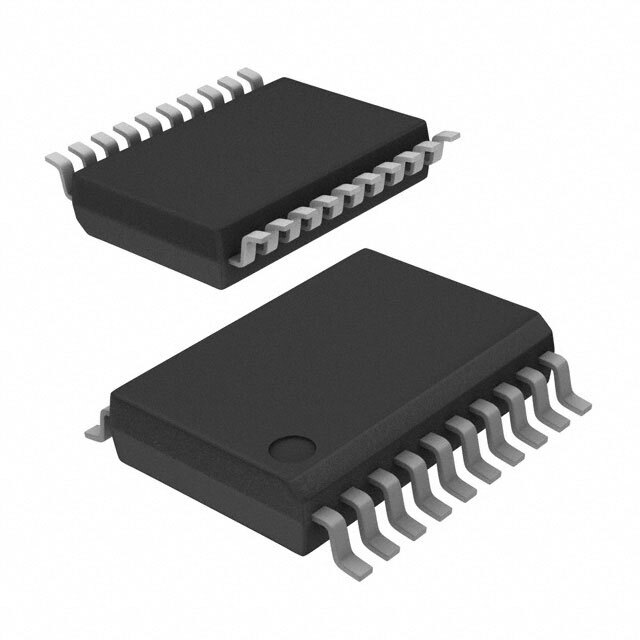

LT1683IG#TRPBF

SKU: 111673

Manufacturer: Analog Devices

DC/DC Cntrlr Dual-OUT Inverting 250kHz Automotive 20-Pin SSOP T/R

2180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Unknown
Number of Outputs	2
Topology	Inverting
Output Voltage (V)	5 to 100
Maximum Switching Frequency (kHz)	250
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	20
Operating Supply Voltage (V)	4 to 20
Maximum Supply Current (mA)	55
Minimum Switching Frequency (kHz)	20
Synchronous Rectifier	No
Synchronous Clock	Yes
Programmability	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	7.5
Package Width	5.6(Max)
PCB changed	20
