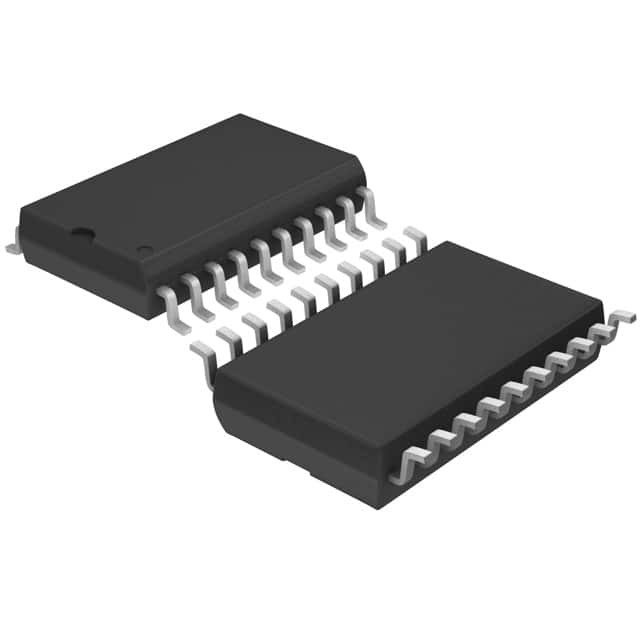

LT1681ISW#PBF

SKU: 154264

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Forward 350kHz Automotive 20-Pin SOIC W Tube

3110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Forward
Output Voltage (V)	1.25 to 64.8
Maximum Output Current (A)	20
Maximum Switching Frequency (kHz)	350
Minimum Input Voltage (V)	9
Maximum Input Voltage (V)	72
Operating Supply Voltage (V)	9 to 18
Maximum Supply Current (mA)	22
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	SOIC W
Terminal Form	Surface Mount
Package Height	2.34(Max)
Package Length	13.01(Max)
Package Width	7.6(Max)
PCB changed	20
