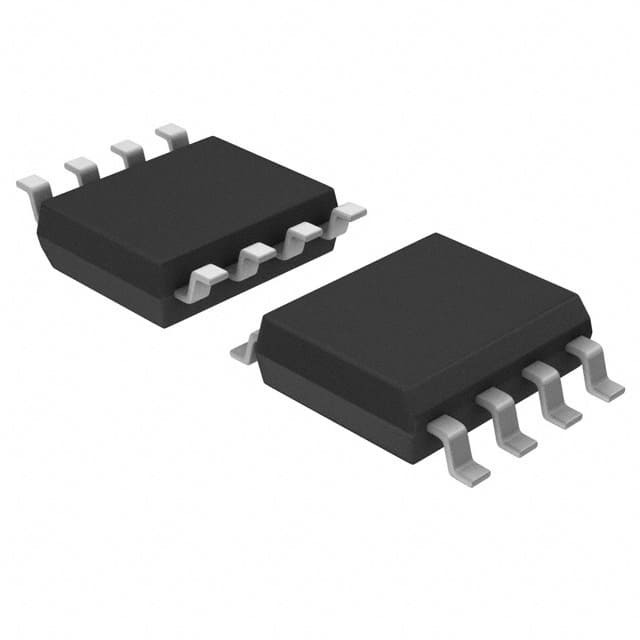

LT1678CS8#TRPBF

SKU: 19710

Manufacturer: Analog Devices

Op Amp Dual Low Noise Amplifier R-R I/O ±18V/36V Automotive 8-Pin SOIC N T/R

7520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Noise Amplifier
Manufacturer Type	Low Noise Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Maximum Input Offset Voltage (mV)	30@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±18
Typical Low Level Output Voltage (V)	0.485
Typical High Level Output Voltage (V)	0.23
Maximum Input Offset Current (uA)	1.6@5V
Typical Input Bias Current (uA)	0.19@5V
Maximum Input Bias Current (uA)	0.4@5V
Maximum Supply Current (mA)	6.8@5V
Typical Output Resistance (Ohm)	100
Power Supply Type	Dual
Typical Slew Rate (V/us)	6@±15V
Typical Input Noise Voltage Density (nV/rtHz)	19@±15V
Input Offset Voltage Drift (uV/°C)	3
Typical Voltage Gain (dB)	131.6
Typical Noninverting Input Current Noise Density (pA/rtHz)	1.2@5V
Minimum PSRR (dB)	100
Minimum CMRR (dB)	98
Minimum CMRR Range (dB)	95 to 105
Typical Gain Bandwidth Product (MHz)	20
Typical Settling Time (ns)	2400
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.99(Max)
PCB changed	8
