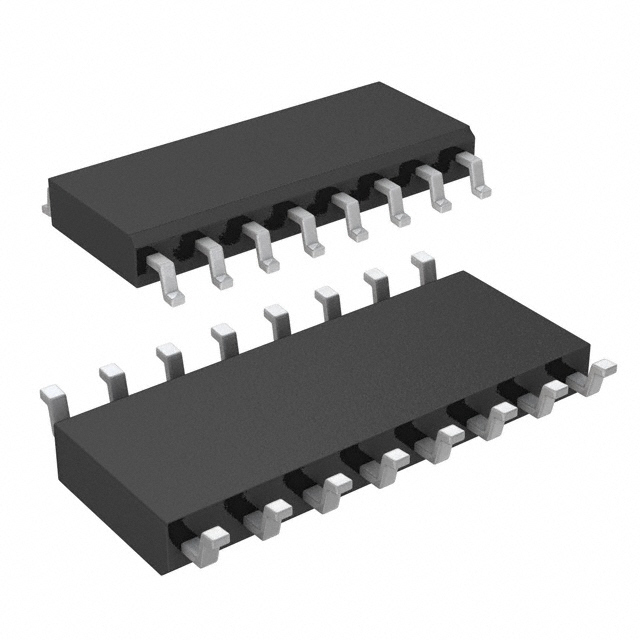

LT1336IS#PBF

SKU: 118723

Manufacturer: Analog Devices

Driver 60V 1.5A 2-OUT High and Low Side Half Brdg Non-Inv 16-Pin SOIC N Tube

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Non-Inverting
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Synchronous
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	200
Maximum Fall Time (ns)	140
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	15
Maximum Supply Current (mA)	40
Typical Input Low Threshold Voltage (V)	1.4
Typical Input High Threshold Voltage (V)	1.7
Reference Voltage (V)	60(Max)
Peak Output Current (A)	1.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Special Features	Synchronous
Maximum Turn-On Delay Time (ns)	500
Maximum Turn-Off Delay Time (ns)	600
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	10.01(Max)
Package Width	3.99(Max)
PCB changed	16
