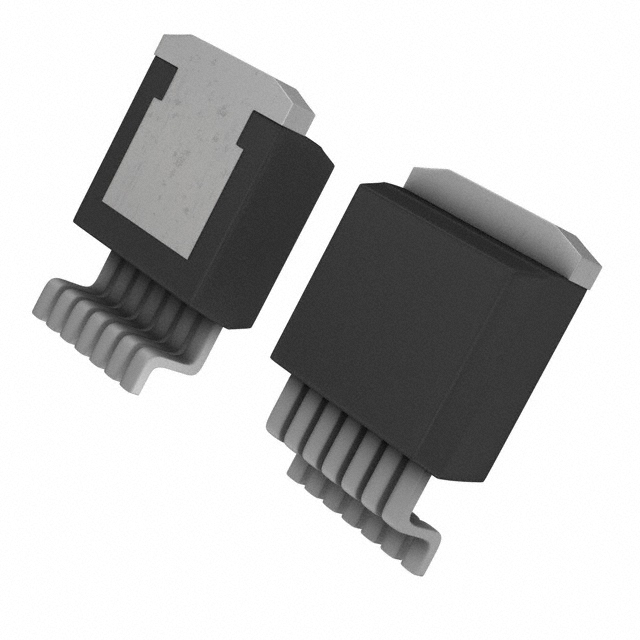

LT1210IR#PBF

SKU: 158035

Manufacturer: Analog Devices

Op Amp Single High Voltage Amplifier ±15V 8-Pin(7+Tab) DDPAK Tube

3570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	High Voltage Amplifier
Manufacturer Type	High Voltage Amplifier
Number of Channels per Chip	1
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	15@±15V
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±15
Maximum Supply Current (mA)	50@±15V
Typical Output Current (mA)	2000@±15V@-40C to 85C
Power Supply Type	Dual
Typical Slew Rate (V/us)	900@±15V
Typical Input Noise Voltage Density (nV/rtHz)	3@±15V
Input Offset Voltage Drift (uV/°C)	10(Typ)
Typical Voltage Gain (dB)	71
Typical Inverting Input Current Noise Density (pA/rtHz)	40@±15V
Typical Noninverting Input Current Noise Density (pA/rtHz)	2@±15V
Minimum PSRR (dB)	60
Minimum CMRR (dB)	50
Minimum CMRR Range (dB)	50 to 60
Shut Down Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	DDPAK
Pin Count	8
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.57(Max)
Package Length	10.54(Max)
Package Width	9.4(Max)
PCB changed	7
Tab	Tab
