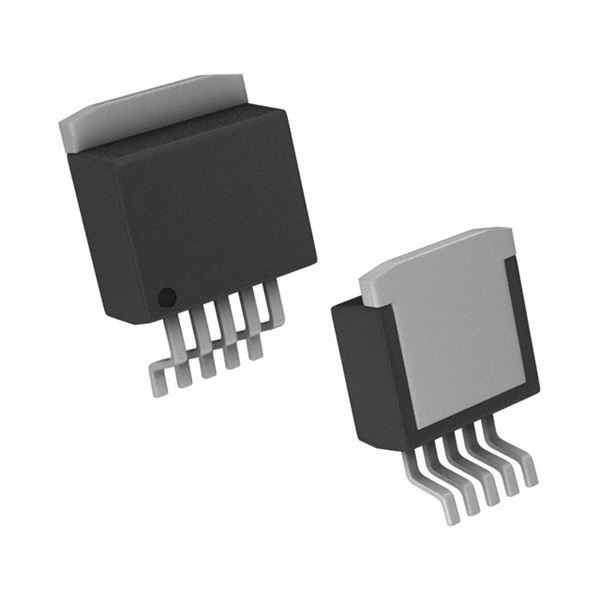

LT1175IQ#PBF

SKU: 62197

Manufacturer: Analog Devices

LDO Regulator Neg -3.8V to -19.3V 0.5A Automotive 6-Pin(5+Tab) DDPAK Tube

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Negative
Accuracy (%)	±1.5
Output Type	Adjustable
Output Voltage (V)	-3.8 to -19.3
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	-20
Maximum Input Voltage (V)	-4.3
Maximum Dropout Voltage @ Current (V)	0.2@25mA
Reference Voltage (V)	-3.8
Line Regulation	0.015%/V
Load Regulation	0.35%
Maximum Quiescent Current (mA)	0.065
Junction to Ambient	60°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Original Package	DDPAK
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.57(Max)
Package Length	10.54(Max)
Package Width	9.4(Max)
PCB changed	5
Tab	Tab
