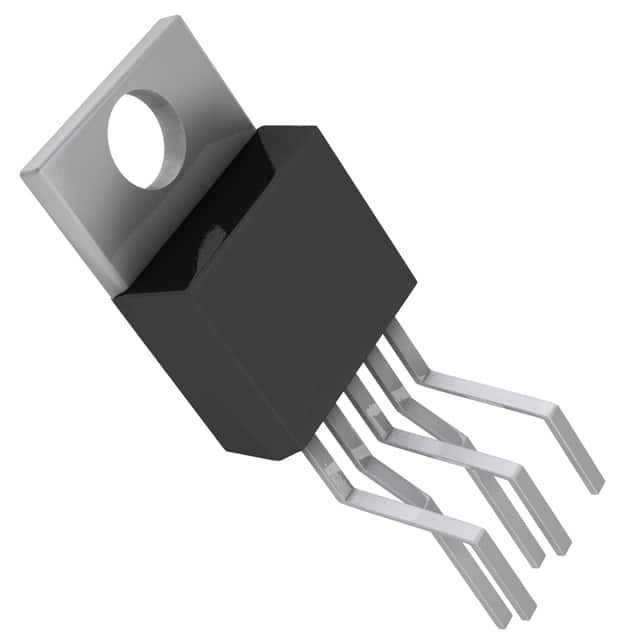

LT1170CT#PBF

SKU: 104439

Manufacturer: Analog Devices

Conv DC-DC 3V to 40V Synchronous Step Down/Synchronous Step Up Single-Out 1.244V to 40V 100W 5-Pin(5+Tab) TO-220 Tube

6130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Synchronous Step Up
Output Type	Adjustable
Switching Frequency (kHz)	112
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.244 to 40
Maximum Output Power (W)	100
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	3 to 40
Typical Switch Current (A)	10(Max)
Typical Quiescent Current (uA)	6000
Operating Temperature-Min	0
Operating Temperature-Max	100
Supplier Temperature Grade	Commercial
Packing Method	Tube
Pin Count	5
Standard Package Method	TO-220
Original Package	TO-220
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.54(Max)
Package Width	4.57(Max)
PCB changed	5
Tab	Tab
