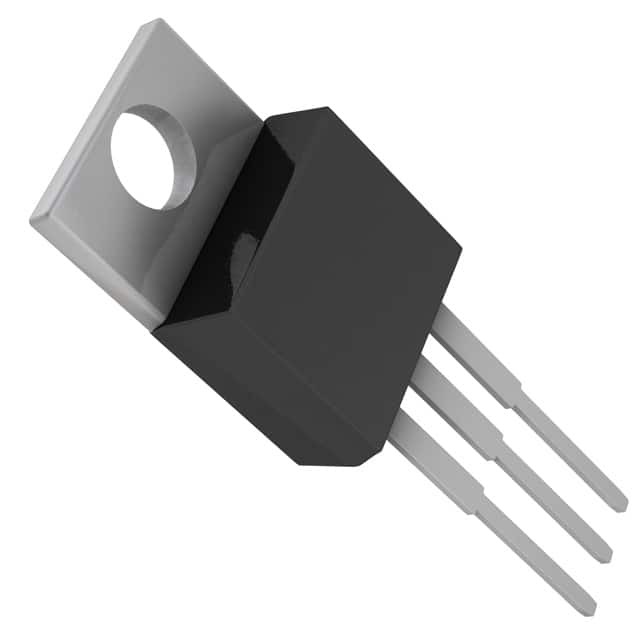

LT1084CT#PBF

SKU: 132934

Manufacturer: Analog Devices

LDO Regulator Pos 1.25V to 28.5V 5A 3-Pin(3+Tab) TO-220 Tube

1570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.25 to 28.5
Maximum Output Current (A)	5
Minimum Input Voltage (V)	2.55
Maximum Input Voltage (V)	30
Reference Voltage (V)	1.262
Line Regulation	0.2%
Load Regulation	0.3%
Junction to Ambient	50°C/W
Junction to Case	2.7°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	0
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.54(Max)
Package Width	4.57(Max)
PCB changed	3
Tab	Tab
