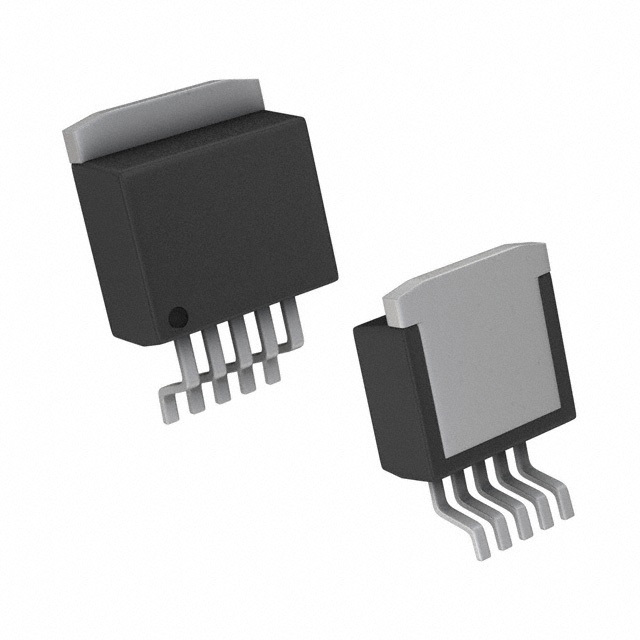

LT1082IQ#TRPBF

SKU: 140003

Manufacturer: Analog Devices

Conv DC-DC 3V to 75V Step Up Single-Out 100V 1A 20W 6-Pin(5+Tab) DDPAK T/R

4640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Up
Isolation	Isolated
Output Type	Adjustable
Switching Frequency (kHz)	70
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	100(Max)
Maximum Output Current (A)	1
Maximum Output Power (W)	20
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	75
Operating Supply Voltage (V)	3 to 75
Typical Switch Current (A)	2.8(Max)
Typical Quiescent Current (uA)	4500
Line Regulation	0.03%/V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	TO-263
Original Package	DDPAK
Terminal Form	Surface Mount
Package Height	4.57(Max)
Package Length	10.54(Max)
Package Width	9.4(Max)
PCB changed	5
Tab	Tab
