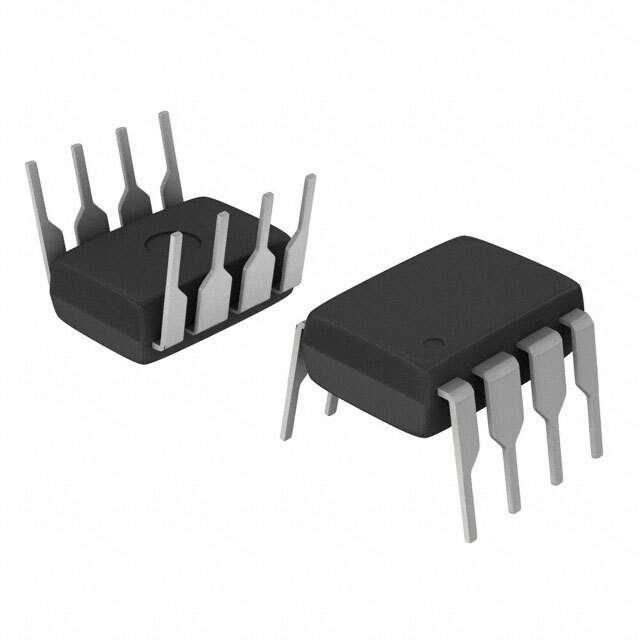

LT1016CN8

SKU: 69191

Manufacturer: Analog Devices

Comparator Single ±5V/10V 8-Pin PDIP N

530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Manufacturer Type	Precision Comparator
Number of Channels per Chip	1
Rail to Rail	No
Process Technology	Bipolar
Typical CMRR (dB)	96
Typical PSRR (dB)	75
Maximum Propagation Delay Time (ns)	14
Output Type	Complementary
Operating Supply Voltage-Max (V)	±5
Maximum Input Offset Voltage (mV)	3@±5V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	10
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±5
Typical Voltage Gain (dB)	69.54
Typical Voltage Gain Range (dB)	40 to 70
Maximum Input Bias Current (uA)	10@±5V
Maximum Supply Current (mA)	35@5V/-5@-5V@0C to 70C
Typical Output Current (mA)	20(Max)
Maximum Test Temperature (°C)	70
Minimum Test Temperature (°C)	0
Power Supply Type	Single
Operating Temperature-Min	0
Operating Temperature-Max	70
Standard Package Method	DIP
Pin Count	8
Original Package	PDIP N
Terminal Form	Through Hole
Package Height	3.3
Package Length	10.16(Max)
Package Width	6.48
PCB changed	8
