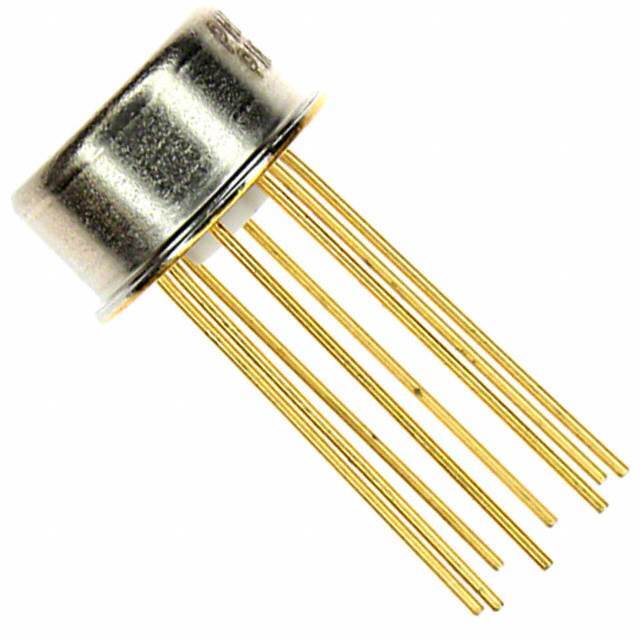

JM38510/12801BGA

SKU: 122425

Manufacturer: Analog Devices

V-Ref Programmable 2.5V/5V/7.5V/10V 10mA 8-Pin TO-99 Tube

1410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Reference Type	Programmable
Topology	Series
Initial Accuracy	0.3%
Maximum Temperature Coefficient	30ppm/°C
Load Regulation	50ppm/mA
Line Regulation	0.005%/V
Output Voltage (V)	2.5/5/7.5/10
Maximum Input Voltage (V)	40
Maximum Output Current (mA)	10
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	TO-99
Pin Count	8
Standard Package Method	TO-99
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	4.7(Max)
