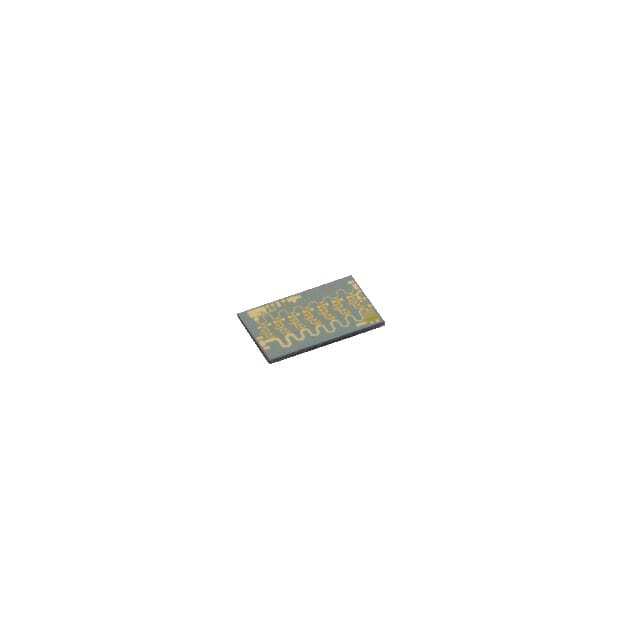

HMC998A

SKU: 108106

Manufacturer: Analog Devices

RF Amp Single Power Amp 22GHz 15V 8-Pin Die Tray

1720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	22000
Typical Gain Flatness (dB)	0.15
Typical Power Gain (dB)	14@22000MHz
Typical Output Power (dBm)	31.5@22000MHz
Typical Output Intercept Point (dBm)	41.5@22000MHz
Maximum Input Return Loss (dB)	15(Typ)@22000MHz
Maximum Output Return Loss (dB)	17(Typ)@22000MHz
Typical Noise Figure (dB)	3@22000MHz
Operating Supply Voltage-Max (V)	15
Minimum Single Supply Voltage (V)	11
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	15
Maximum Supply Current (mA)	500(Typ)@15V
Power Supply Type	Single
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Die
Pin Count	8
Package Height	0.1
Package Length	2.98
Package Width	1.78
