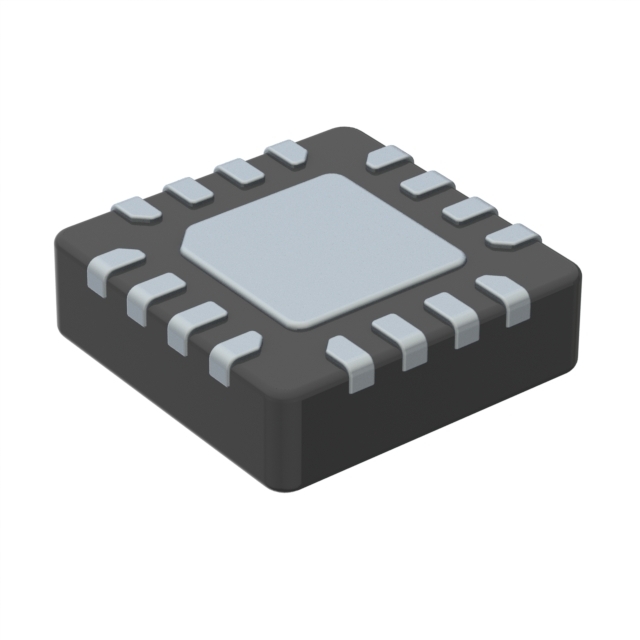

HMC917LP3ETR

SKU: 72826

Manufacturer: Analog Devices

Active RF Multipliers x4 6GHz to 10GHz-OUT 16-Pin QFN EP T/R

2040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Frequency Multiplier Type	Active
Multiplying Factor	x4
Input Frequency Range (GHz)	1.5 to 2.5
Output Frequency Range (GHz)	6 to 10
Typical Input Return Loss (dB)	7
Typical Output Return Loss (dB)	12
Typical Phase Noise (dBc/Hz)	-148
Maximum Input Power	10dBm
Typical Output Power (dBm)	2
Typical Operating Supply Voltage (V)	5
Maximum Supply Current (mA)	91(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	16
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	16
