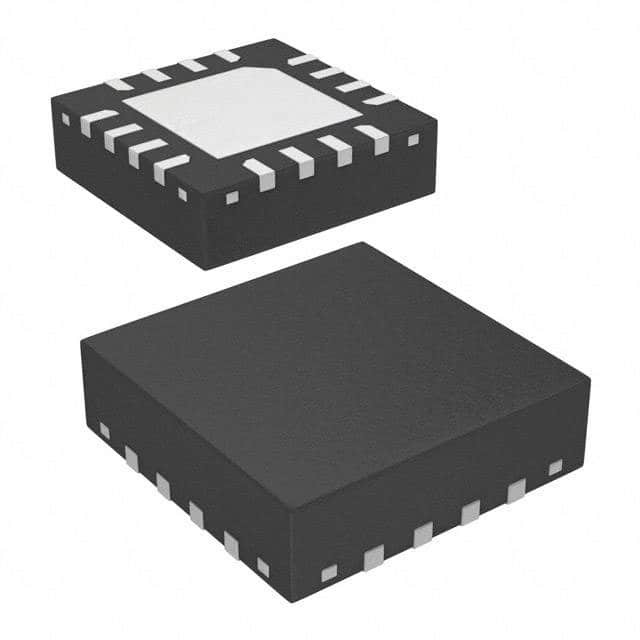

HMC849LP4CETR

SKU: 40249

Manufacturer: Analog Devices

RF Switch SPDT 0MHz to 6GHz 40dB Automotive 16-Pin QFN EP

310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Switch Type	SPDT
Switch Configuration	Dual SPDT
Number of Switches	2
Switching Speed (ns)	150(Typ)
Frequency Band (MHz)	0 to 6000
Maximum Frequency (MHz)	6000
Minimum Isolation Voltage (dB)	40
Maximum Insertion Loss (dB)	2.5
Technology	GaAs pHEMT
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5
High Control Voltage (V)	2 to 5
Typical Supply Current (mA)	0.85
Maximum Power Dissipation (mW)	1144
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	QFN EP
Pin Count	16
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	16
