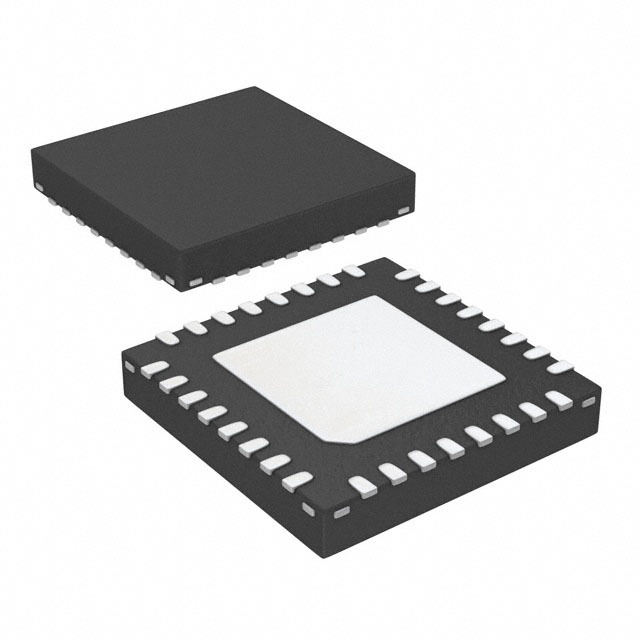

HMC742ALP5E

SKU: 44644

Manufacturer: Analog Devices

RF Amp Single MMIC Amp 4GHz 5.5V 32-Pin QFN EP T/R

1740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	MMIC Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	4000
Typical Power Gain (dB)	10@4000MHz
Typical Output Power (dBm)	22@4000MHz
Typical Output Intercept Point (dBm)	39@4000MHz
Maximum Input Return Loss (dB)	12(Typ)@4000MHz
Maximum Output Return Loss (dB)	10(Typ)@4000MHz
Typical Noise Figure (dB)	4.5@4000MHz
Operating Supply Voltage-Max (V)	5.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Supply Current (mA)	175@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	860
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.1(Max)
Package Width	5.1(Max)
PCB changed	32
