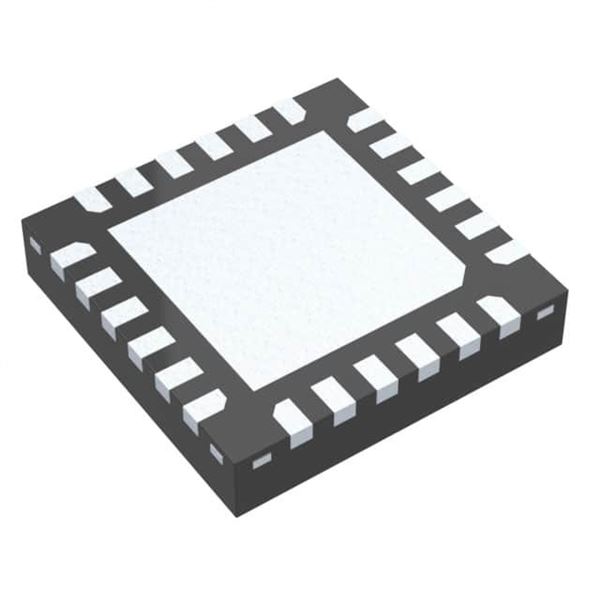

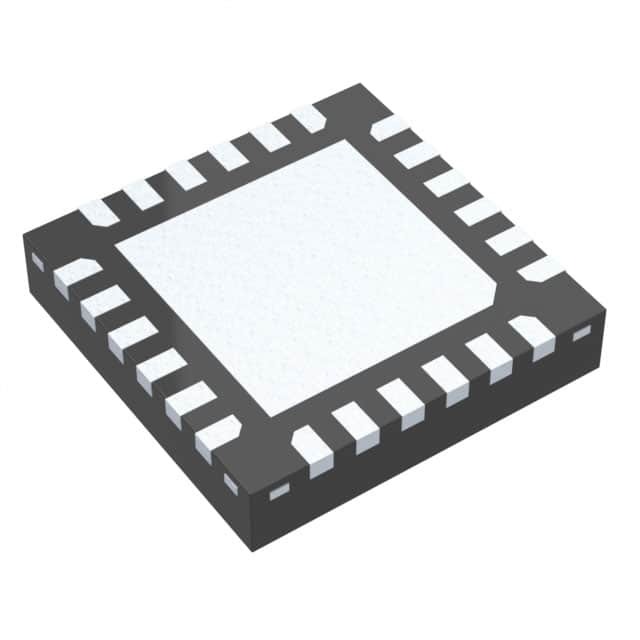

HMC739LP4E

SKU: 115259

Manufacturer: Analog Devices

Oscillator VCO 23800MHz to 26800MHz 5V 24-Pin QFN EP SMD T/R

3020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Voltage Controlled Oscillator (VCO)
Lower Frequency (MHz)	23800
Upper Frequency (MHz)	26800
Output Frequency (MHz)	23800 to 26800
Frequency Range (MHz)	23800 to 26800
Typical Phase Noise (dBc/Hz)	-93@100KHz
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.25
Typical Operating Supply Voltage (V)	5
Tuning Voltage (V)	1 to 13
Maximum Supply Current (mA)	220
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	24
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	24
